Separate Backing
Separate Backing controls whether the backing mesh is merged into the base-colour object or written as its own object in the final model. It changes the 3MF object structure. It does not automatically make the backing thicker and it does not create another filament slot by itself.
The option is disabled by default.
Checked against the source code available on October 19, 2026. Eligible single-sided projects also offer Backing output, which can export the model and backing as separate projects.
Location

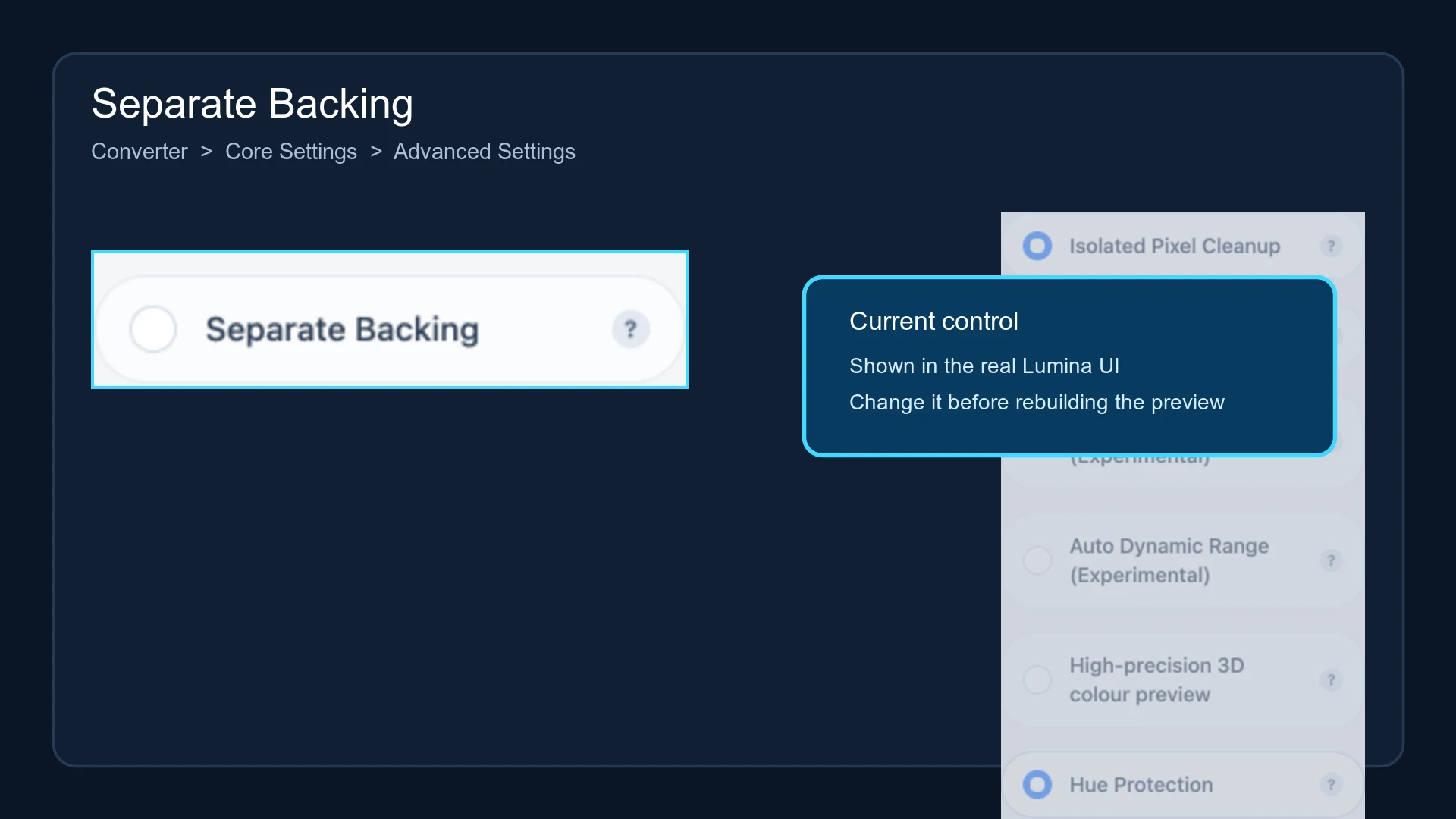

Open Converter → Core Settings → Advanced Settings, then locate Separate Backing.
When disabled
The backing is merged into the object that uses the selected backing material. A slicer normally presents it together with image geometry assigned to the same material, which keeps the object list simpler.
When enabled
Lumina preserves a separate backing mesh:
- raster and high-fidelity models use a separate object named
Backing; - native vector models use a separate object named
Board; - the object retains the selected backing-material metadata;
- an independent object does not mean an additional material slot;
- large-format generation applies the same rule to every valid tile.
After importing the project into a slicer, verify that the backing object is present and mapped to the intended filament. Slicers group multi-object projects differently, so do not rely only on the colours shown on the build plate.
Preview and regeneration
The normal 2D colour preview shows the colour-matching result and is not authoritative for backing separation. The regenerated 3MF and the slicer's object list are the source of truth.
Changing this option requires a new model build. Lumina recipe cards store the setting.
Typical uses
Backing output
| Option | Download | Purpose |
|---|---|---|
| Same project | Model and separate backing object in one project | Manage them together in the slicer |
| Independent plate projects (ZIP) | Separate model and backing 3MF projects in a ZIP | Slice and print each project separately |
Independent projects retain the original dimensions. Lumina does not shrink the artwork to fit the bed. Unpack the ZIP, open each 3MF, and check the object, brim, and wipe-tower positions before slicing. A downloaded file is not proof that placement is safe; resolve any manual-check warning in the corresponding project.
This option is for single-sided, non-relief, single-model export. It is unavailable for double-sided, relief, five-color extended, batch, puzzle, large-format, and Model texture workflows. If a mode change makes it unavailable, use Same project or that workflow's existing tiled output.
Separate backing does not change color-layer order or determine how the finished parts should be bonded or assembled.
When a separate backing object helps
- Select, hide, or inspect the backing independently in a slicer.
- Treat the backing as a separate part during post-processing.
- Satisfy a printer or slicer workflow that manages backing and image objects separately.
If the backing does not require independent handling, leaving the option off produces a simpler object list.
