Upload, Replace, Crop, and Rotate an Image
After uploading artwork, you can adjust its framing and orientation or add more images for a batch:
- click the upload area or drag files into it for the first import;
- Replace current image stays in the single-image workflow, while Add more images enters Batch mode;
- cropping keeps only the selected area; rotation changes orientation; neither can create detail that is absent from the source;
- after the image changes, old colour edits, Preview data, and generated downloads no longer describe the current image. Preview and Generate again.
Preserve the original before editing
Lumina works with a cropped or rotated task copy and does not intentionally overwrite the source file on disk. Even so, keep the original separately. A browser task is not a file archive, and a refresh, expired session, or accidental replacement can remove temporary state.
For important artwork, keep at least:
- the untouched source image;
- a prepared working copy with the intended canvas and orientation;
- the final settings or Share Card recipe;
- the final 3MF after verification.

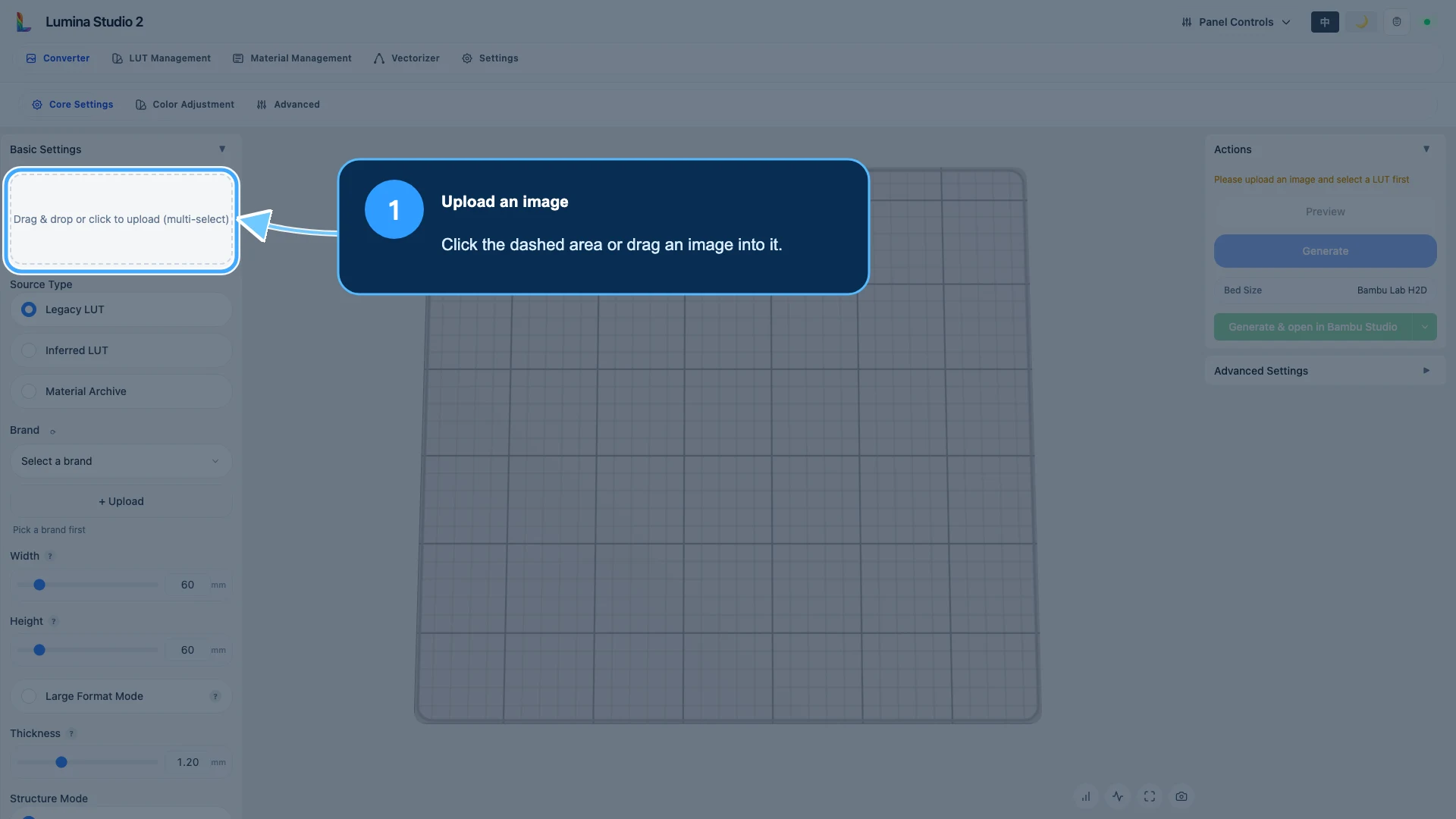

Step 1: upload an image
In Core Settings, click the dashed upload area or drag an image onto it.
The upload area accepts multiple files. Selecting one file starts the single-image workflow. Selecting several files starts Batch mode immediately.
If nothing happens, test a small JPG or PNG that opens normally on your computer. This separates a source-file problem from a broader connection or service problem.

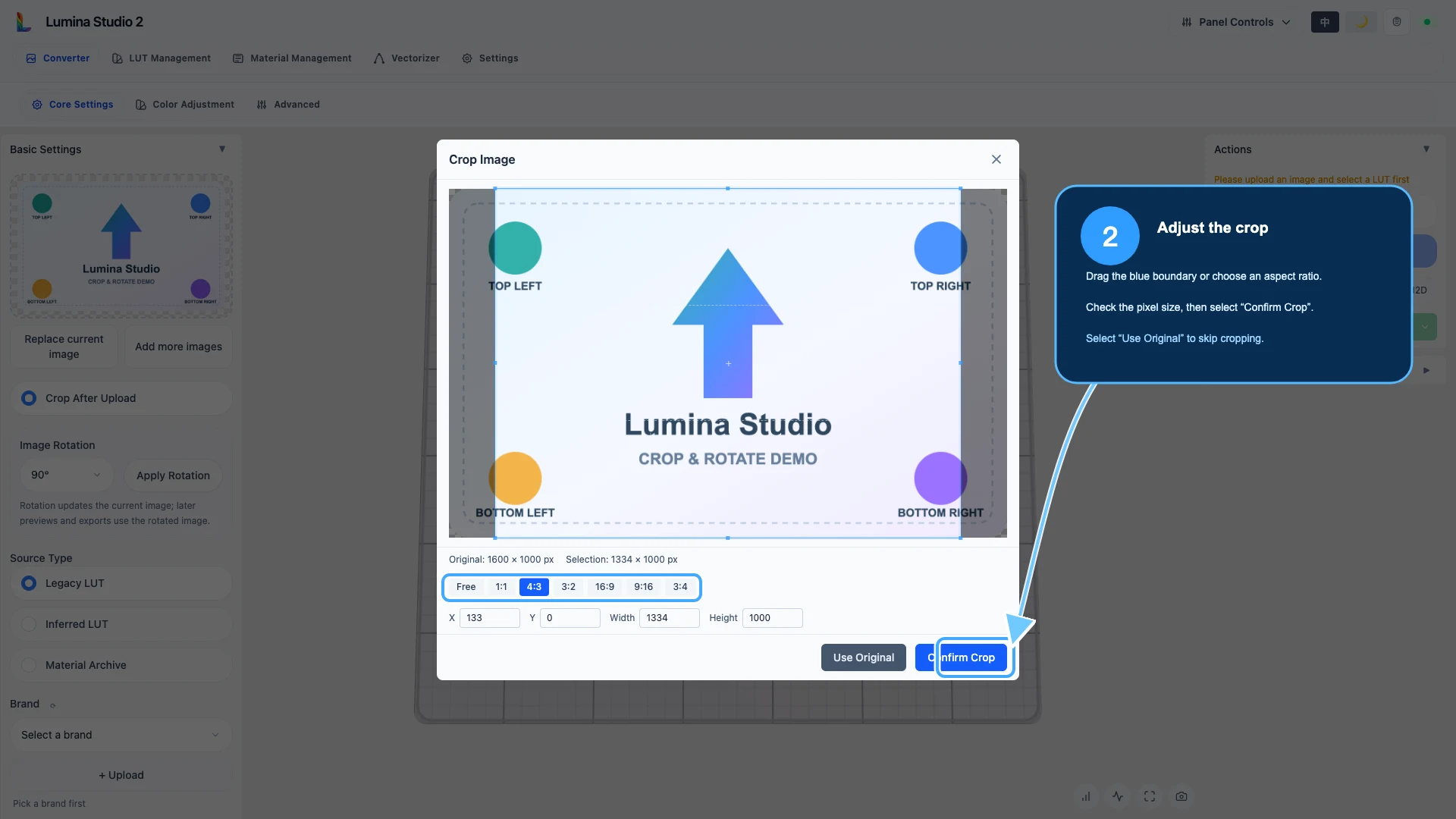

Step 2: crop after upload
When Crop After Upload is enabled, a raster image opens in the crop dialog after selection. Drag the blue boundary, or choose a common aspect ratio, and verify the selection dimensions before confirming.
Use:
- Apply Changes to keep the selected area and rotation;
- Cancel to discard the changes;
- the close button to cancel the current dialog without treating that as a successful changes.
After loading an image, you can also choose Crop & Rotate to reopen the dialog.
Cropping is destructive to the task copy: pixels outside the selection are unavailable to later Preview and Generate steps. It does not resize missing detail back into the image.
Leave margin around transparency and soft edges
Transparent PNG shadows, anti-aliasing, and soft outlines can consist of nearly invisible semi-transparent pixels. If the crop boundary touches only the solid-looking edge, the finished model can lose part of the glow or outline. Leave a small margin, then compare the Preview.
Why might SVG skip this dialog?
Native Vector uses the SVG canvas and path geometry rather than raster cropping. Fix
its viewBox, page size, off-canvas objects, and geometry in a vector editor. See
SVG Troubleshooting.

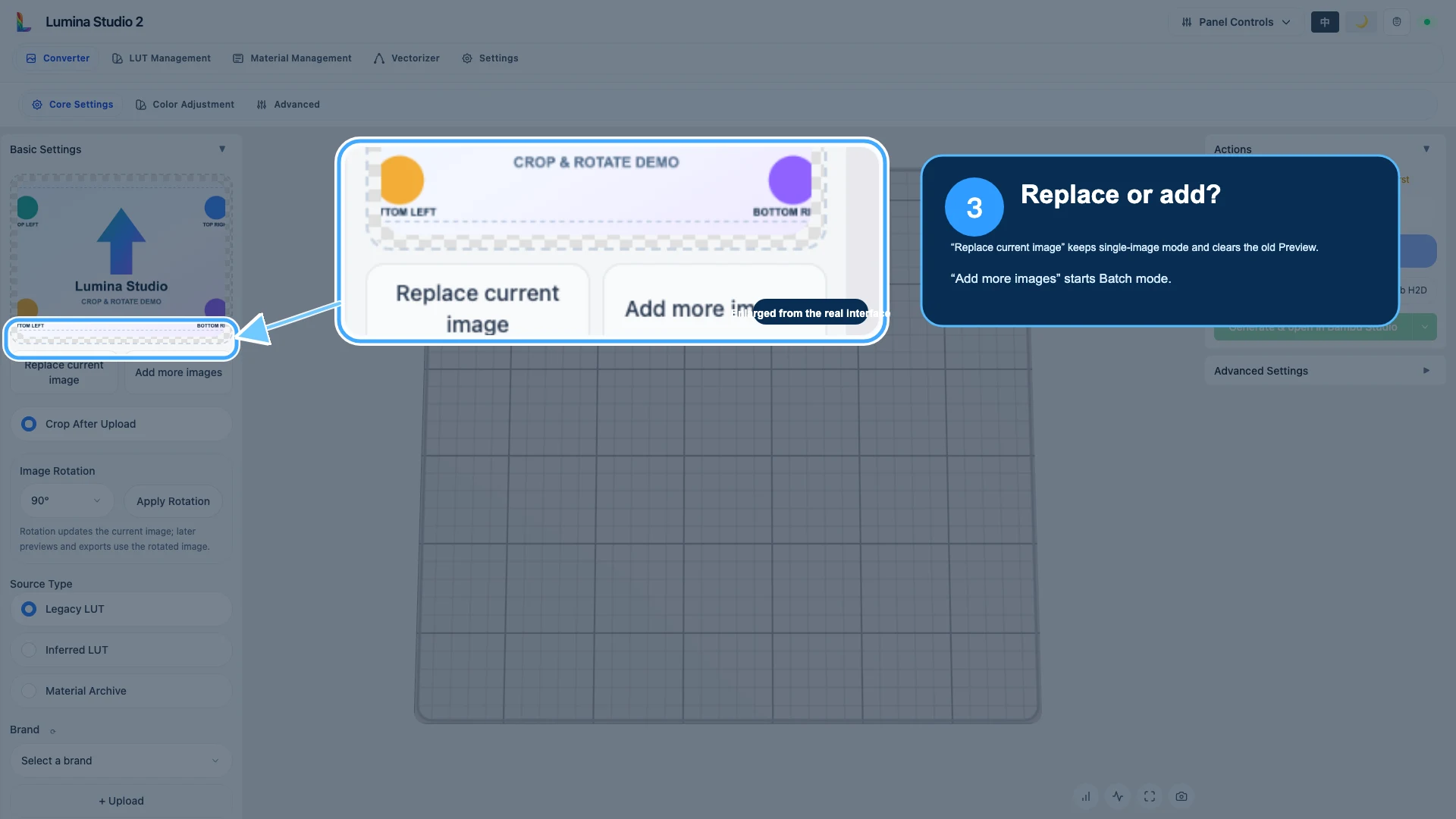

Step 3: replace the image or add more images
After one image is loaded, two controls appear below its thumbnail.
Replace current image
This removes the current task image and imports another while remaining in the single-image workflow. Existing Preview data, Color Workstation edits, and downloads are cleared because they cannot be transferred safely to a different source.
Clicking the thumbnail can also open the replacement file chooser.
Add more images
This retains the current image, appends one or more files, and switches to Batch mode. The files then share one set of primary conversion settings. Batch is not suitable when every image needs a different crop, orientation, Source Type, or structure.
If you intended to replace but now see a file list and Batch Generate, you entered Batch mode. Remove unwanted files with the × beside each name. Keeping only one file returns to the single-image workflow.

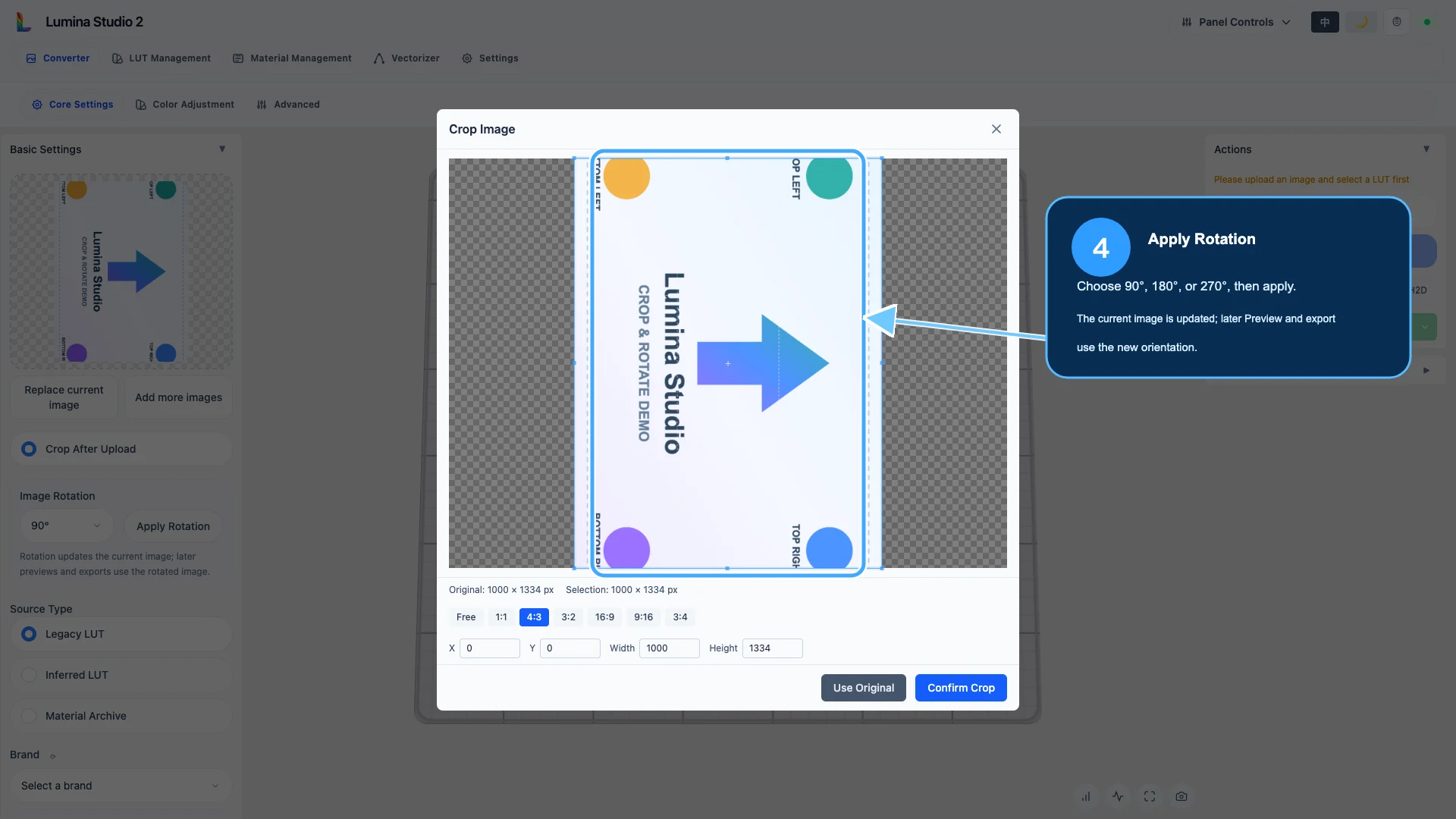

Step 4: rotate the current image
For one image, choose Crop & Rotate, then Rotate left 90° or Rotate right 90°. Click twice for 180°, check the framing, and choose Apply Changes. Choose Cancel to discard the changes.
Rotation updates the task image. Later Preview, 3D, and export use the new orientation; files already downloaded to your computer do not change. A 90° or 270° rotation also swaps width and height, which can change the final composition at the same target width.
Cropping and rotation share the same dialog. SVG images can be rotated while preserving vector content, but the dialog does not crop them as bitmaps.
canvas, or low-resolution detail.

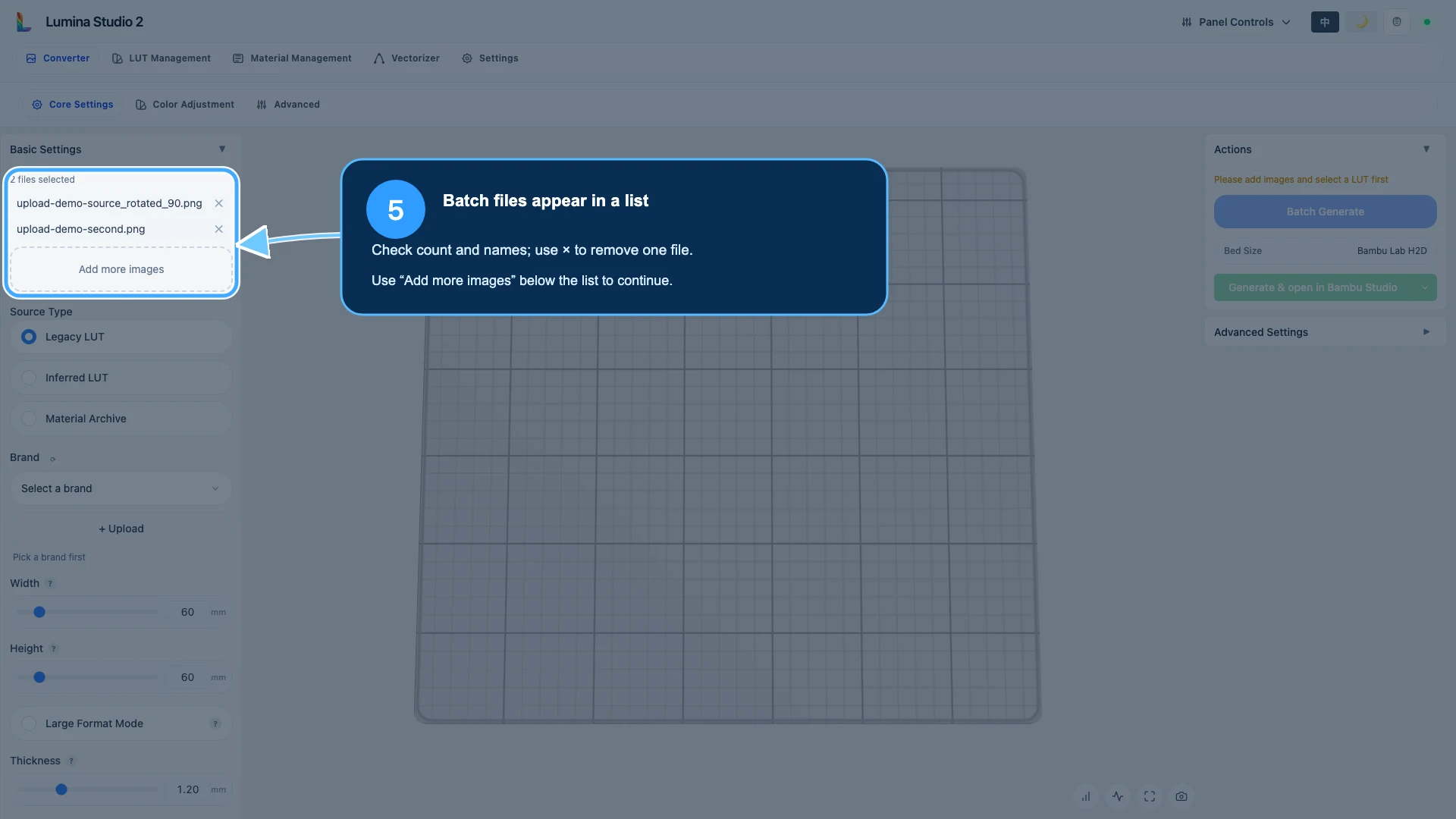

Step 5: inspect the Batch file list
Before setting shared parameters, confirm:
- the displayed file count matches the intended Batch;
- no file is duplicated or the wrong revision;
- each × removes the expected file;
- newly added files appear in the list.
Use Add more images under the list to append files. Batch mode does not expose an independent crop and rotation workflow for every file. Prepare each working copy first, then add it to the Batch.
What resets after the image changes?
| Operation | Current image | Workflow | Old Preview and downloads | Next action |
|---|---|---|---|---|
| Replace current image | Replaced | Single image | Cleared | Check crop, Source Type, and settings; Preview again |
| Apply a crop | Uses the selected area | Single image | Cannot represent the new canvas | Check composition and Preview |
| Apply a rotation | Uses the rotated copy | Single image | Cleared | Check the orientation, then Preview |
| Add more images | Retained and appended | Batch | Single-image result cleared | Check the list and shared settings |
| Remove a Batch file | That item is removed | Batch while more than one remains | Batch result becomes stale | Confirm the remaining list and Generate again |
Cleared temporary results do not mean that a source file was deleted from disk. They mean the old task result no longer applies to the new image or file list.
Common questions
Why did the crop dialog not appear?
Check whether Crop After Upload is enabled. Batch mode does not open a separate dialog for each file, and SVG does not use the raster crop workflow. In a single-image raster workflow, enable the switch and use Replace current image to import again.
Can I rotate without cropping?
Yes. Open Crop & Rotate, adjust the direction, retain the full image and choose Apply Changes.
Can two 90° rotations make 180°?
Yes. Click the same rotation button twice in the dialog, then choose Apply Changes once.
How do I leave Batch mode after entering it accidentally?
Remove unwanted files until only the intended single file remains. Check filenames carefully so you do not remove the one with edits you planned to keep.
Why did a transparent edge lose a thin ring after cropping?
The edge probably contains semi-transparent pixels. Re-import the original and leave a small margin outside the visible solid edge.
The image direction is right, but the model still faces the wrong way
Confirm the thumbnail and 2D Preview first, then inspect Structure Mode, display surface, model orientation, and print-facing surface in the slicer. Image rotation and model placement are separate settings.
Why is there still no thumbnail after upload?
Try a small known-good JPG or PNG. If that also fails, follow The Page Will Not Open, Keeps Spinning, or Generation Fails to check the connection, file, and service stage separately.
Content licence
Unless otherwise noted, the original text is available under the Wiki’s CC BY-NC-SA 4.0 content licence.
Supported formats, control names, and Batch behaviour can change. Treat the current interface, Preview, and generated result as the final authority.
